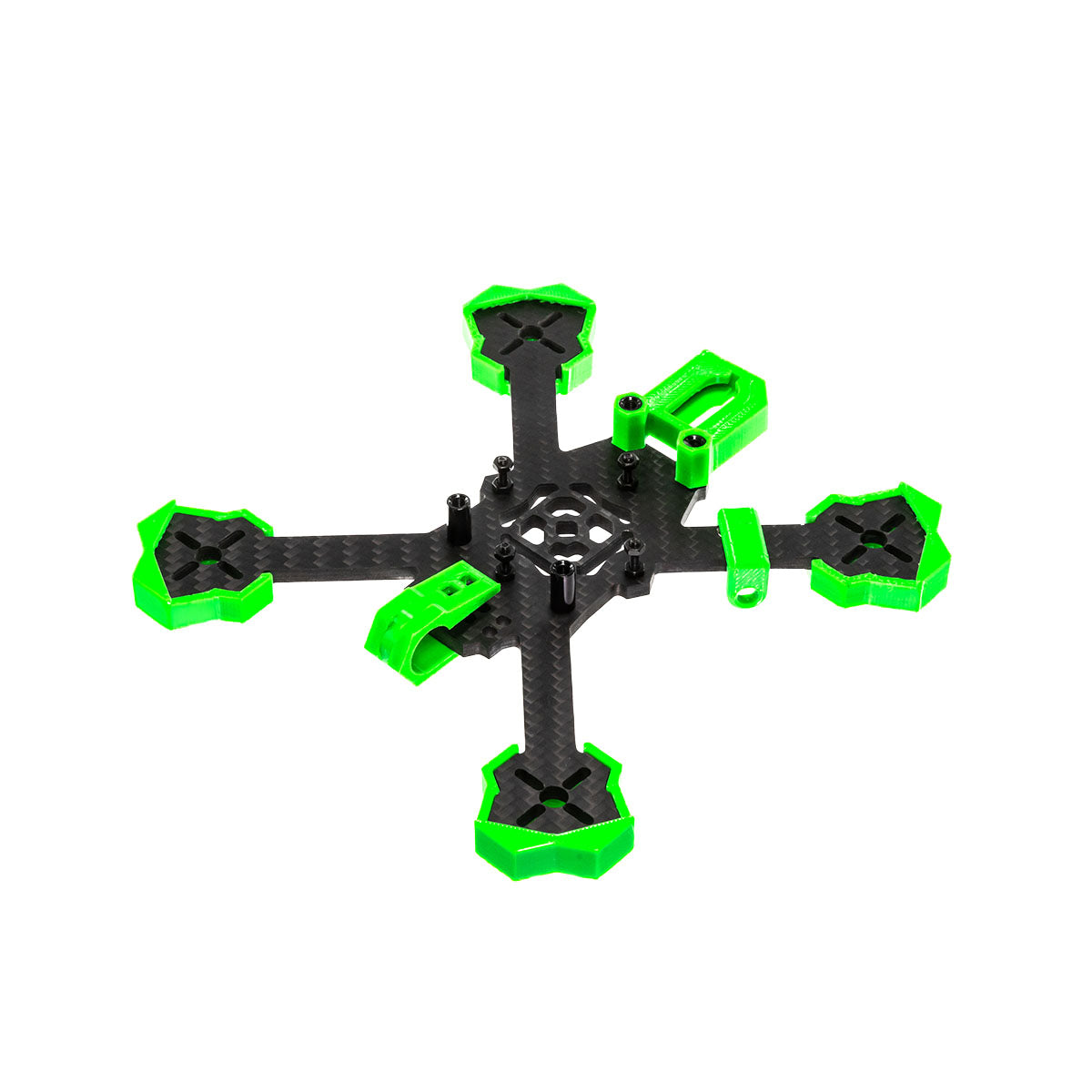

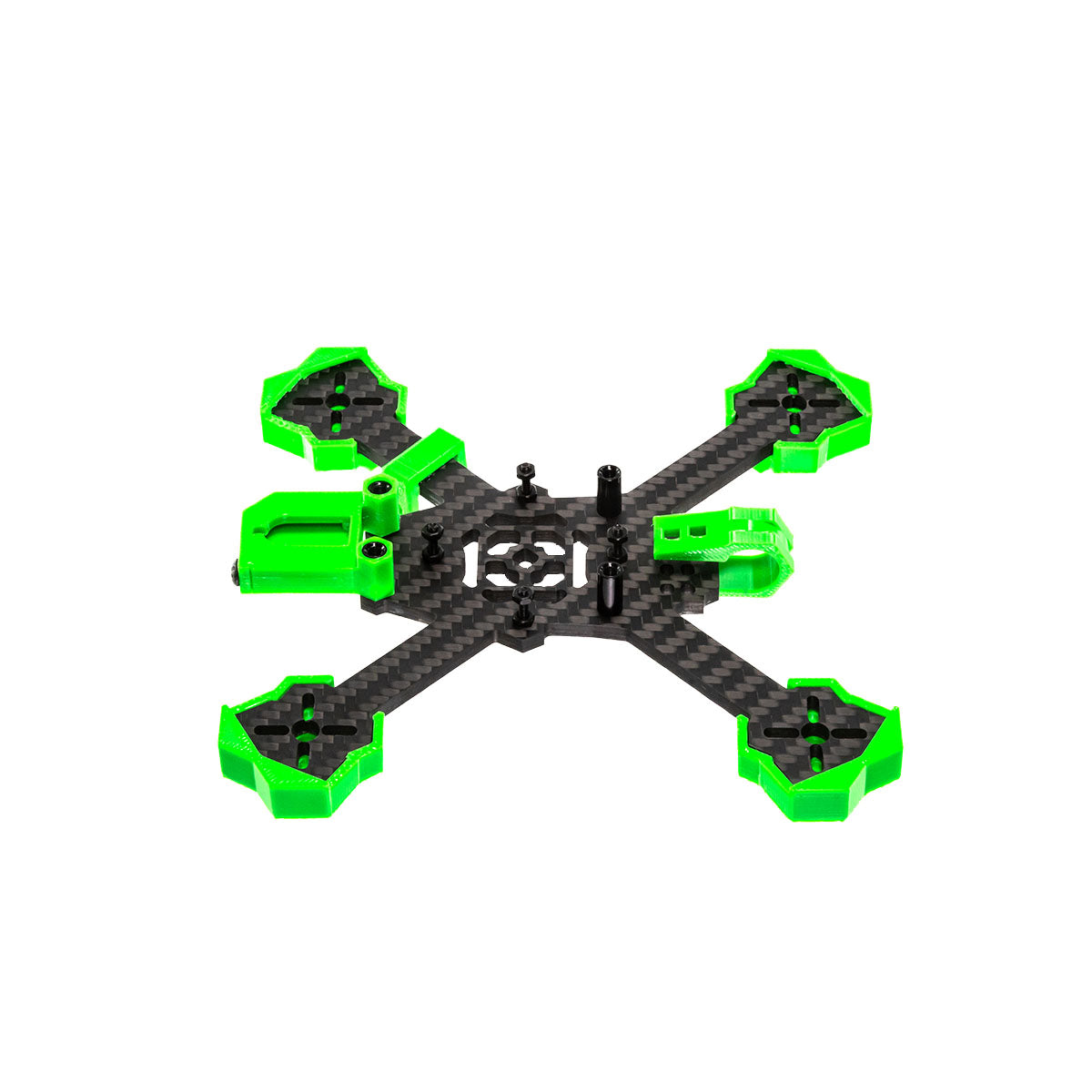

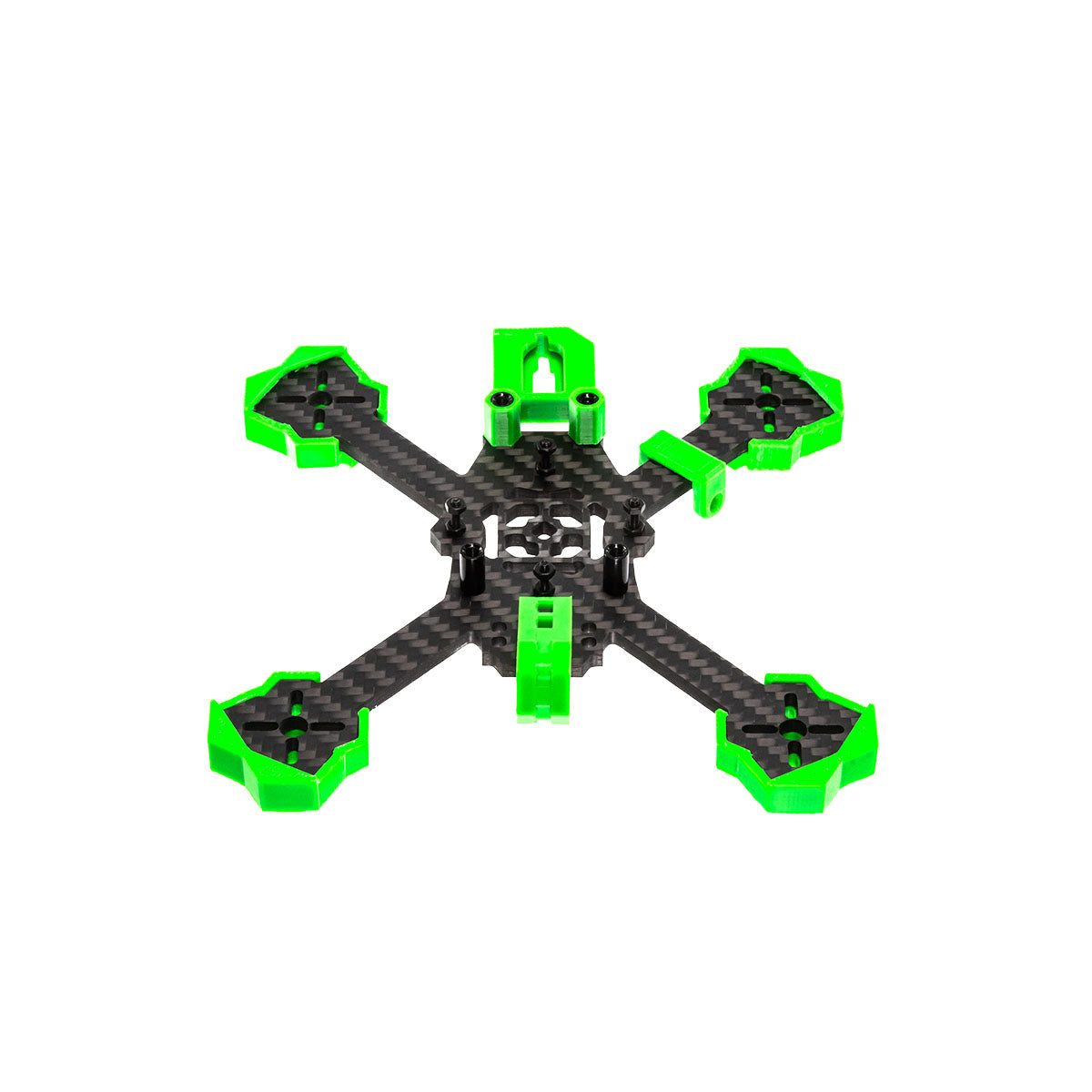

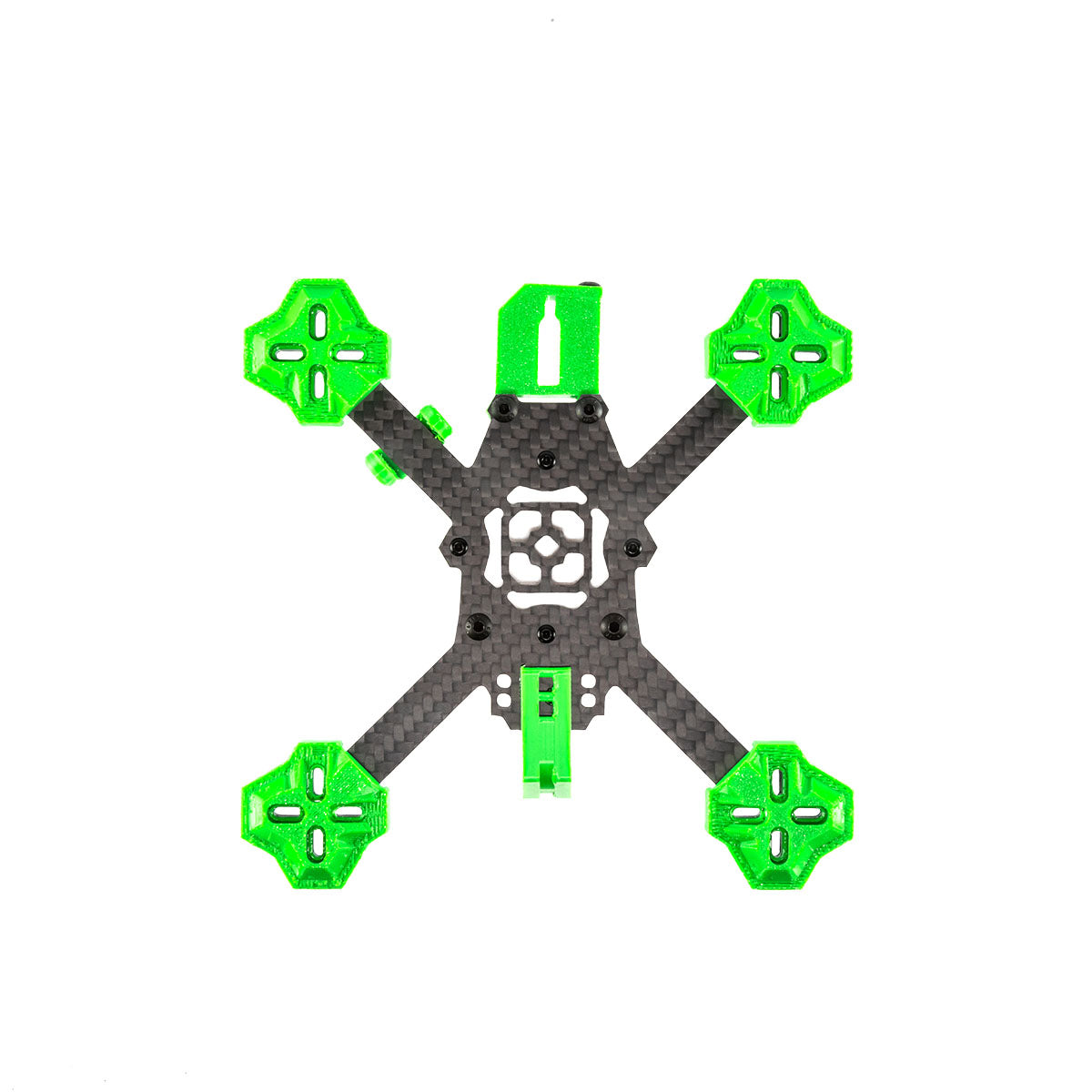

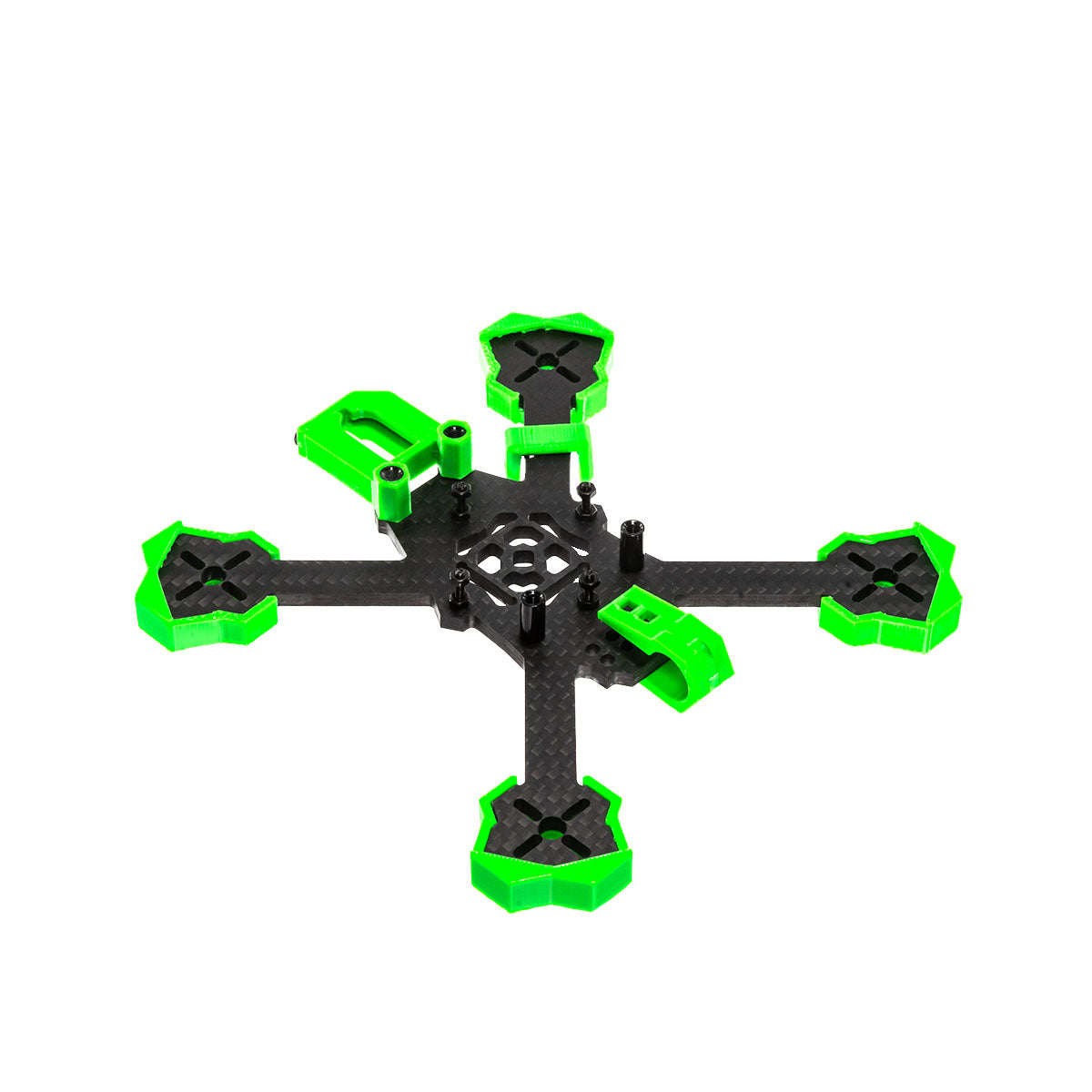

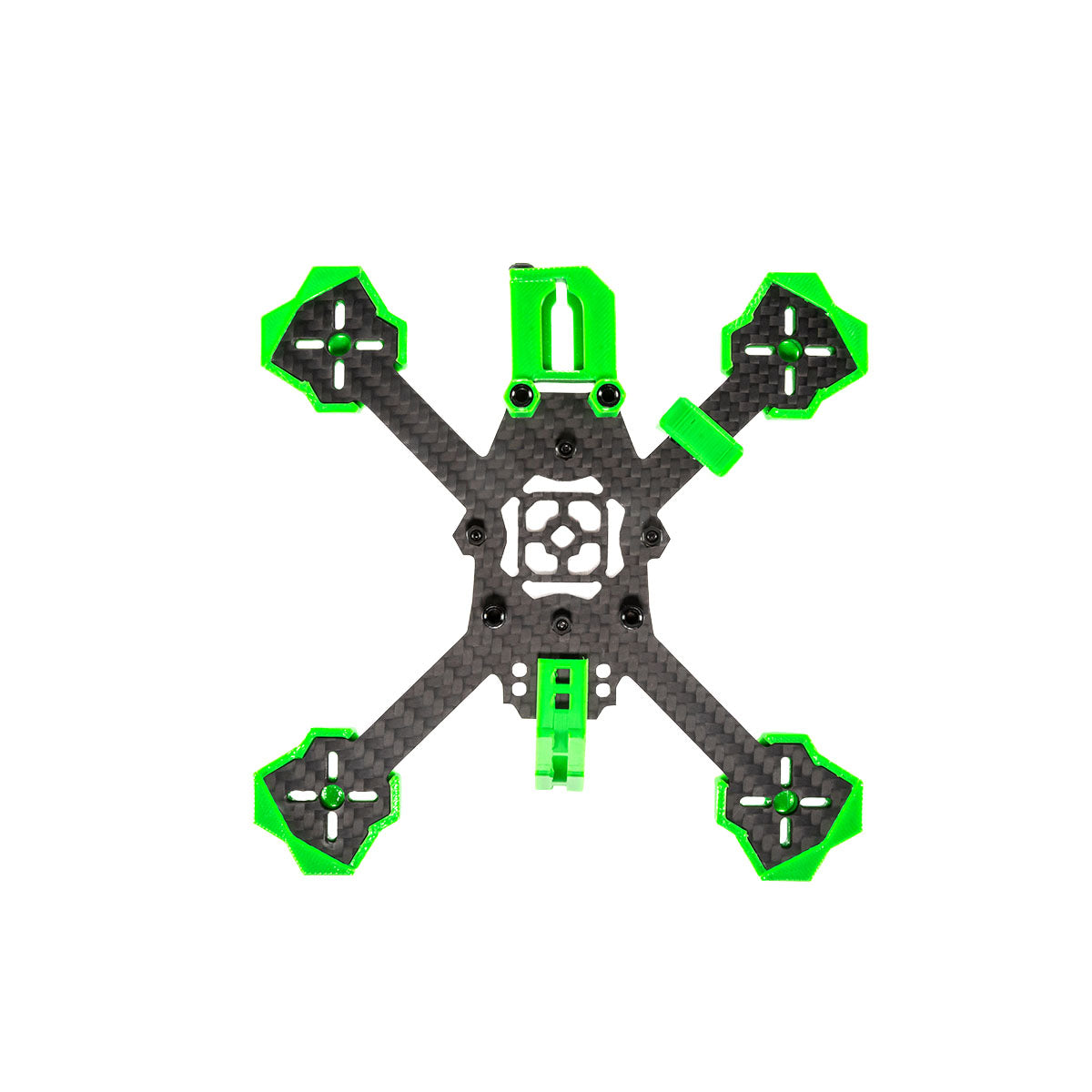

Clover FPV Systems Guinea 2.5 inch True X Unibody

The Guinea is Clover FPV Systems first Sub 250 drone!

Redesigned from the ground up with weight saving in mind the Guinea brings with it a new level of innovation with Clover FPV Systems.

You can thank the Guinea for the new camera extender and for the fact that every Clover Cage now comes with a breakout board.

Features:

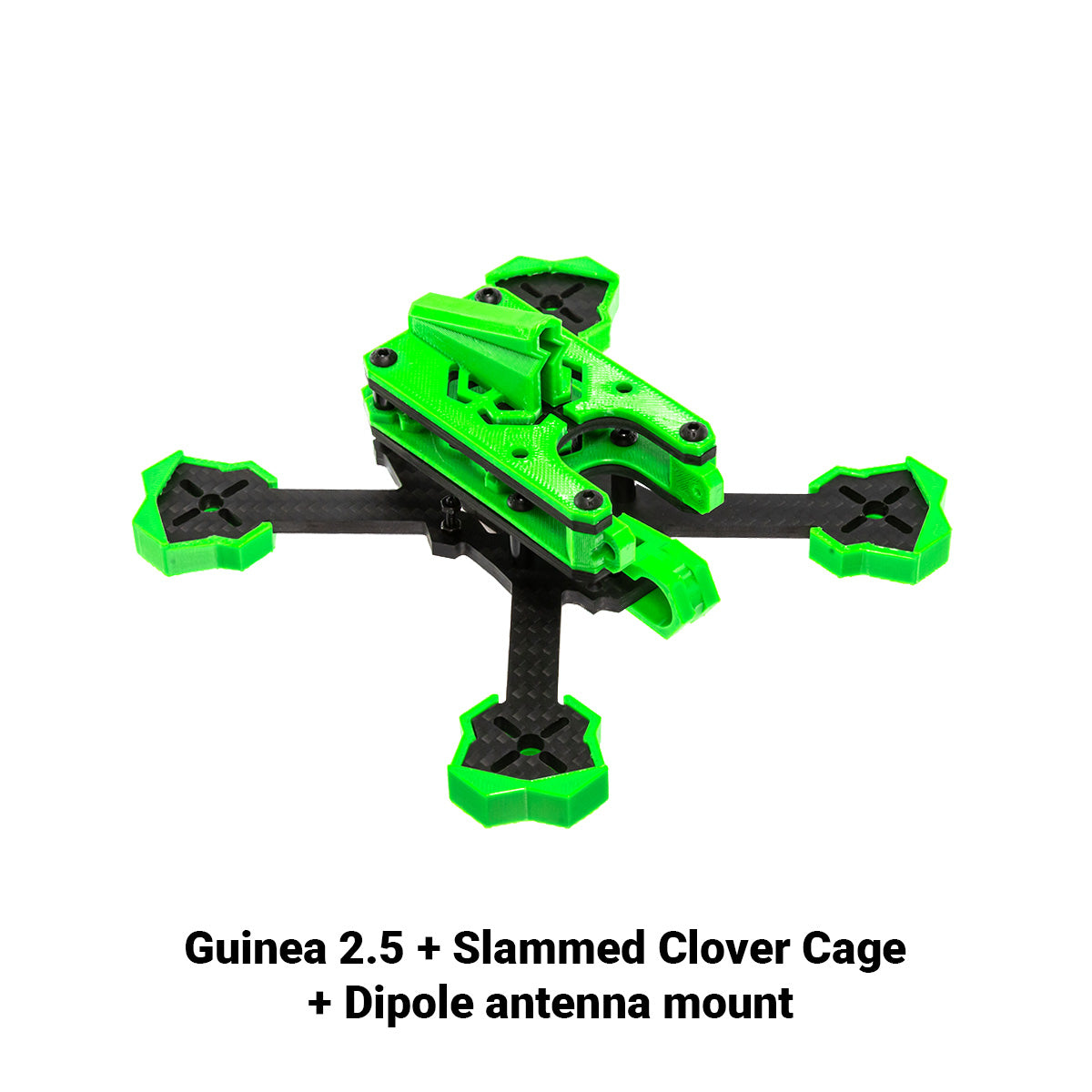

• Clover Cage compatible. Free your VTX! FPV Everything!
• Highest quality 3K Matte Twill carbon fiber sheets cut in the USA at Clover HQ, Saint Paul, Minnesota.
• Lightweight Unibody design
• Very easy to tune.

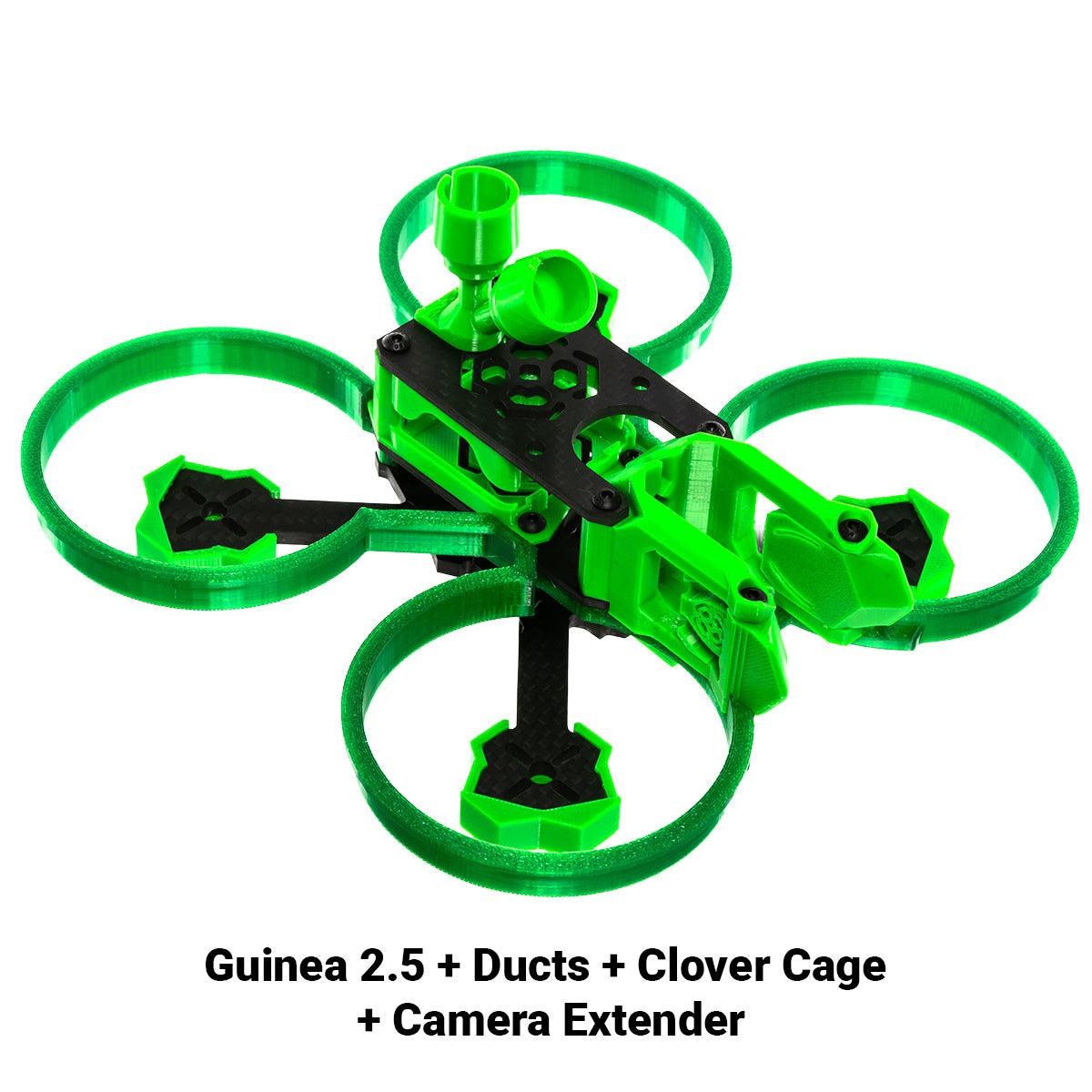

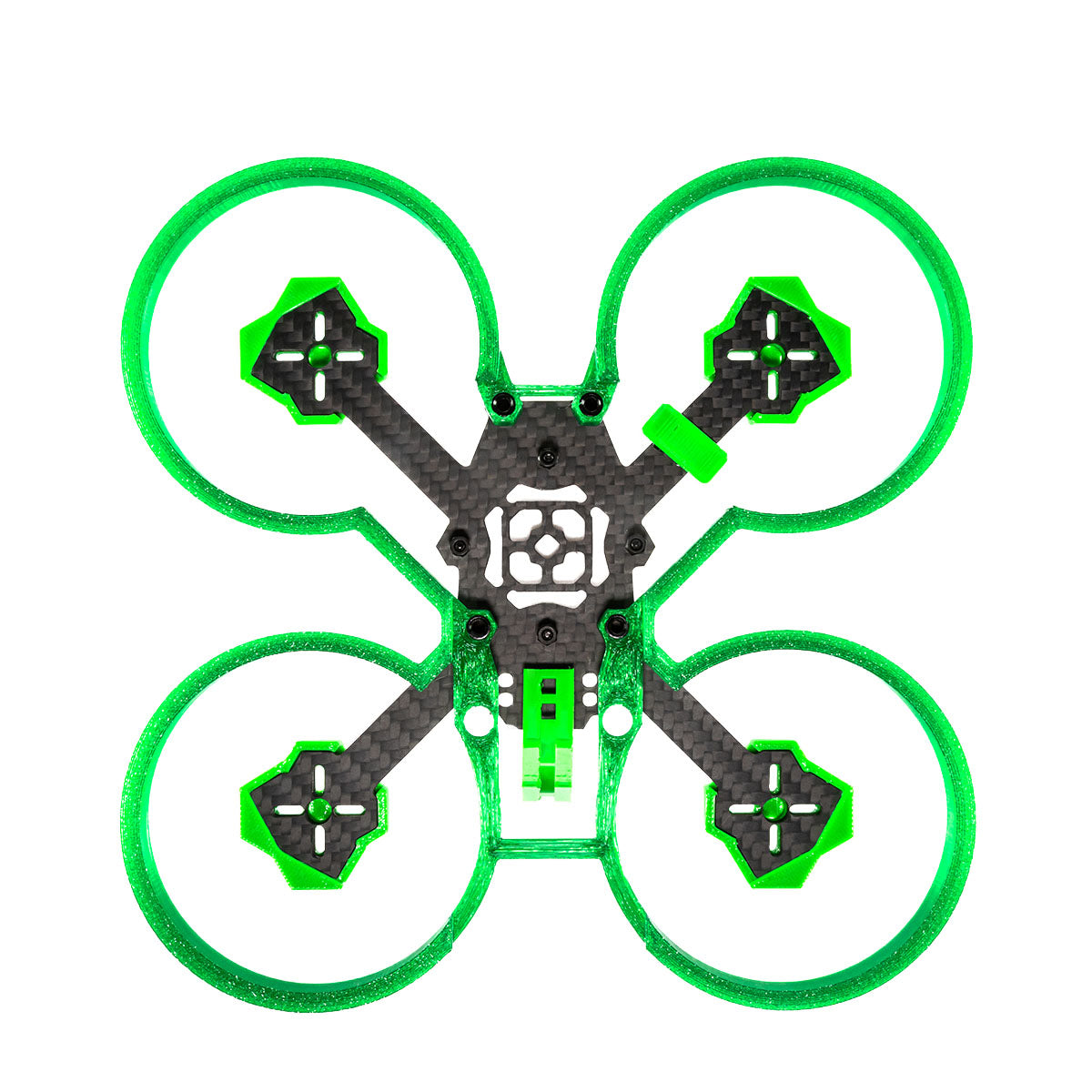

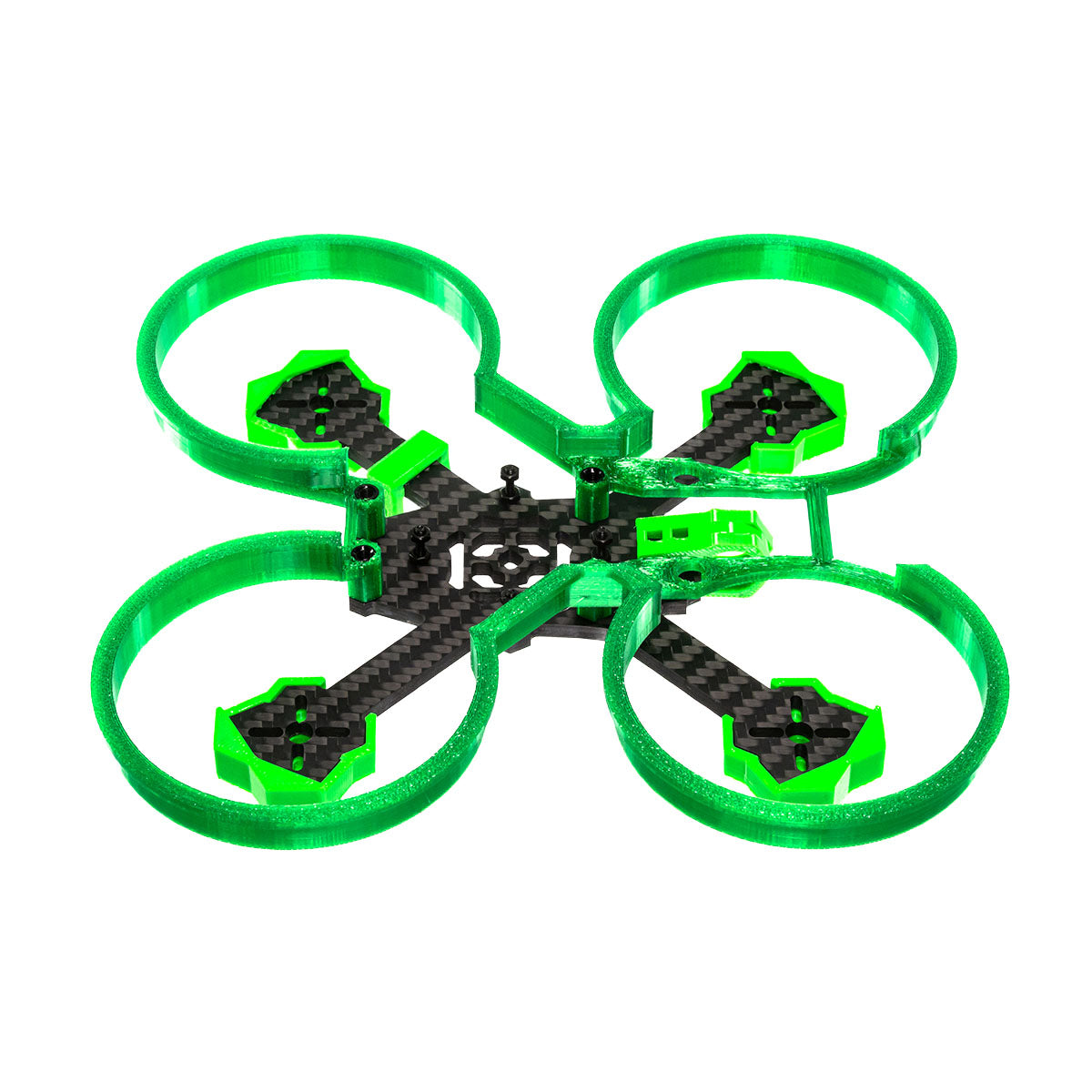

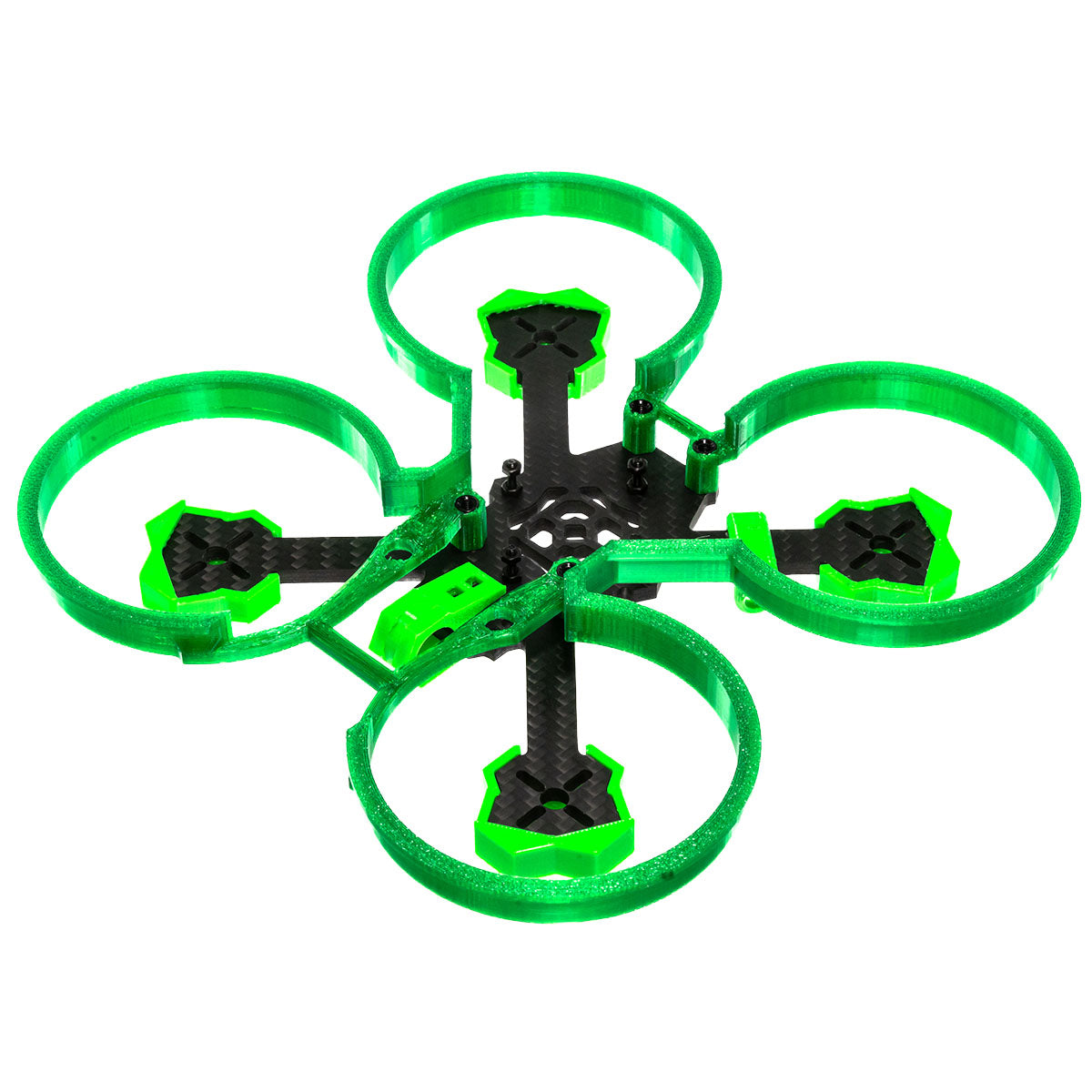

• Bash - Cruise - Work - 3D Printed Ducts slide onto standoffs with no further modification needed
• “Frunk” Mounting grid for capacitor and RX
• Rear mounting position for VTX antenna

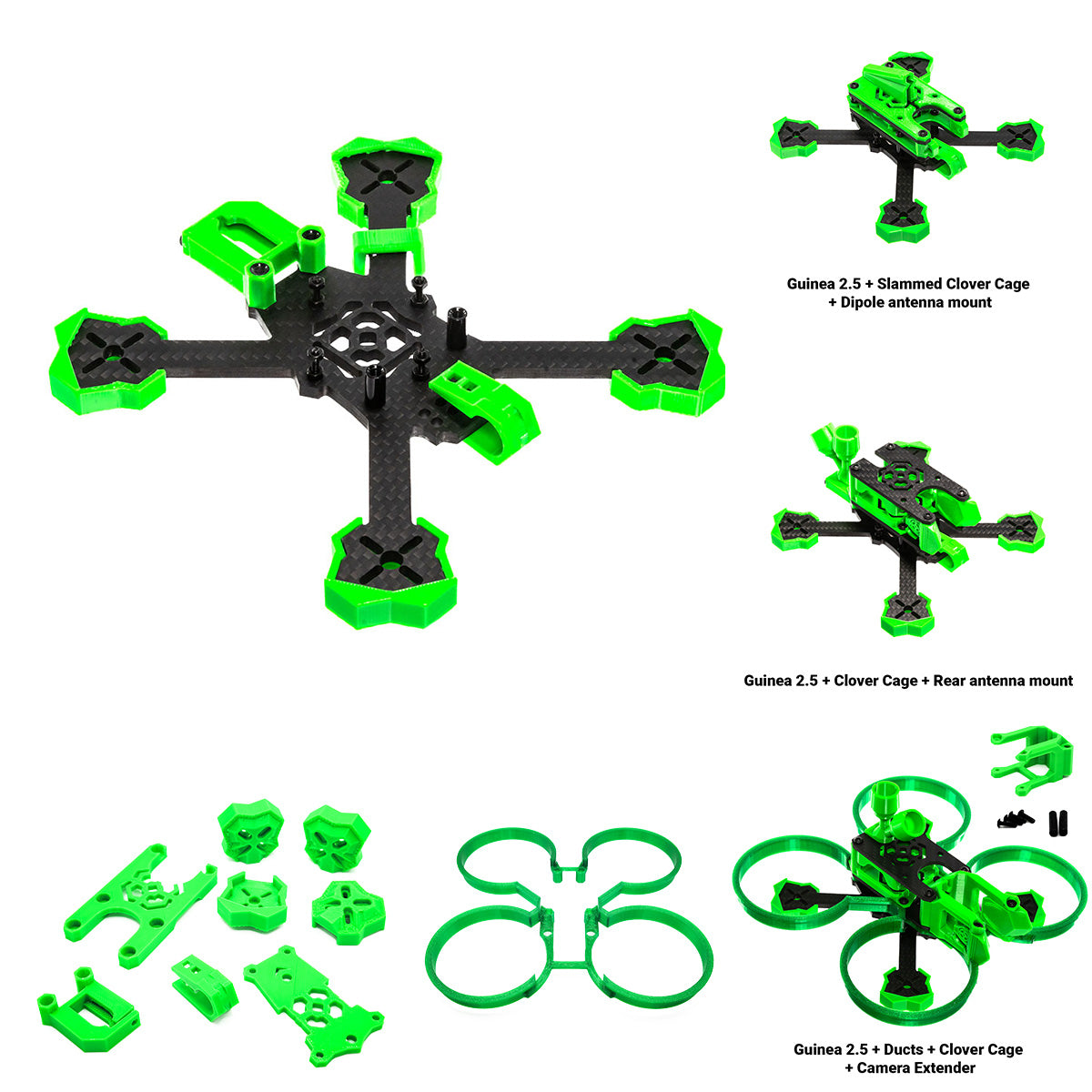

• Accessories: Heavy Protection Shoes, Arm mounted antenna holder, Top mounted battery holding plate, Bottom mounted battery holding plate

Prop Size: 2.5

Weight: carbon fiber + hardware = 30g
               3D prints: 17 - 28g
               Ducts =

Arm configuration: True X

Plate thickness: 3.5mm

Props in view: Yes

Standoff height: 10mm

Stack mounting compatibility: 25.5 x 25.5 AIO only

Motor mount pattern compatibility: 4 hole 9 * 9 - 16 * 16

Recommended Motors Stator Size: ~ 12xx - 14xx

Battery Cell Count: 3s-4s

Battery Mounting Configs: Top mounted or bottom mounted through frame or on 3D print

What you'll need to complete:

-3D printed parts (Available for purchase or download)

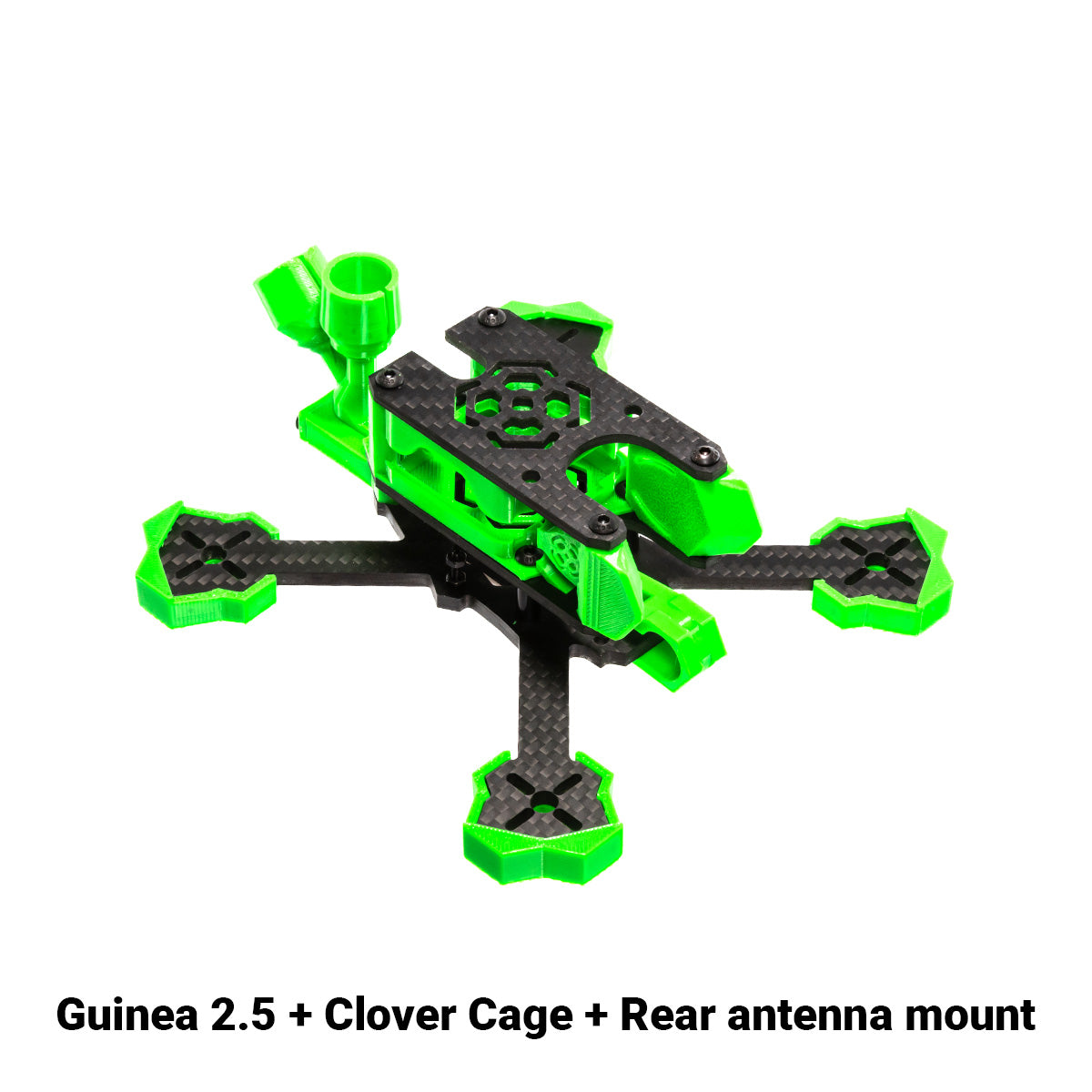

-A Clover Cage

-A VTX

-Flight controller and ESC

-Receiver

-Motors

THERE'S MORE!

-Full ecosystem of 3D printable parts such as GPS, action cam mounts, external mounting solutions, cable management and more!

Join our community of FPV Everything maniacs and gain access to all of the 3D models and printable parts to mount your VTX wherever you can think to.
